Blackhawk Slim Series Small Card 698-4000MHz 4dBi Antenna -150dBc PIM
Blackhawk Slim Series Small Card 698-4000MHz 4dBi Antenna -150dBc PIM
  • DefaultTitle

$ 56.12

$ 43.17

Please select combo product attributes
The combo subtotal is $,SAVE$
Unavailable

Product Details

ELECTRICAL SPECIFICATIONS

Frequency Range MHz698-9601690-21702300-25002500-27003300-4000
Gain dBi3.04.04.55.04.0
VSWR≤ 1.8≤ 1.8≤ 1.8≤ 1.8≤ 2.0
PolarizationHorizonal
PIM 3rd Order 2x20W≤-140 | -150 | -153 dBc
Horizontal Beam-width360°
Vertical Beam-width118°75°65°63°70°
Input Impedance50 Ω
Max. Input Power50 W
Lightening ProtectionDC Ground

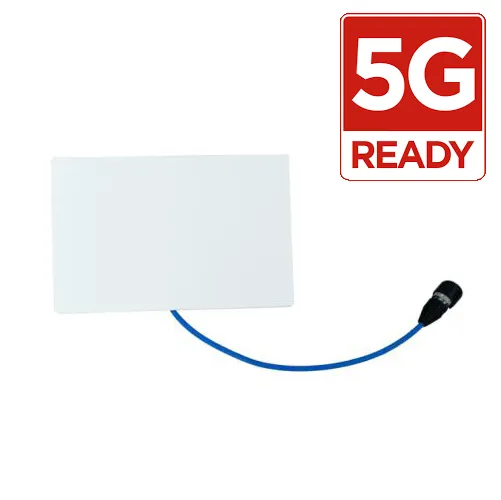

The Blackhawk Small Card antenna is part of the slim series range measuring only 7mm thick. The thin and compact white design is 18cm x 11cm and allows the product to be nearly invisible when mounted yet provides industry-leading increases for in-building coverage and capacity.

This side mount antenna is designed to operate with all mobile carriers regardless of what frequency they operate on and offers a 3 or 5dBi gain depending on MHz range. Perfect for indoor mobile repeater applications.

ConnectorN / 4.3-10 DIN Female
Dimensions180 x 110 x 7.0mm
Weight0.2kg
ColourWhite
Reflector MaterialPCB
Radome MaterialABS (UV Stabalised)
Operating Temperature -40°C to 65°C

Weight0.2 kg
